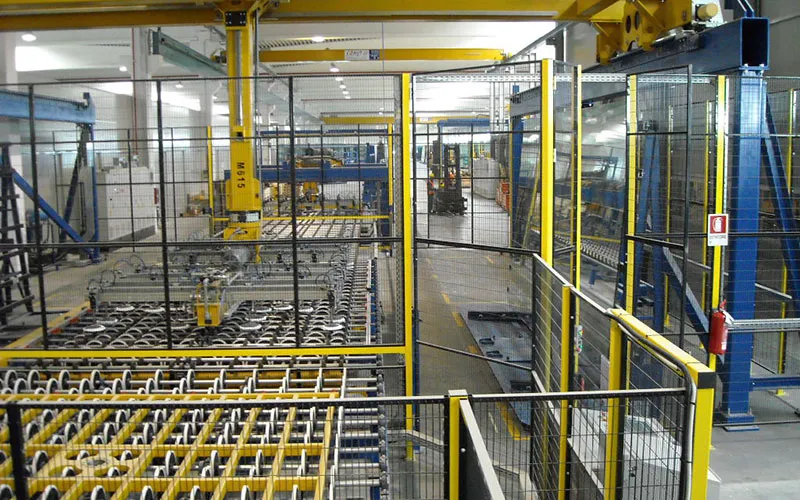

Laminated production lines
Processing lines to produce laminated glass plates. Laminated glass is used in IG unit and in other architectural applications for its safety features. This product is the result of two or more plates assembled with plastic foil (PVB) between them. After autoclave process, the glass is processed on inspection lines and stacked on final racks.

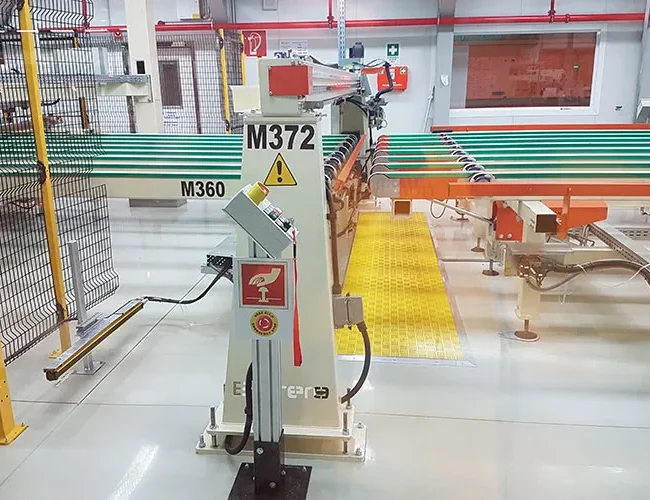

Loading
The glass plates are loaded on lines with different type of loading systems, according to glass sizes, types and numbers of racks and cycle time of the line. Loaders can be traditional systems and/or robot solutions.

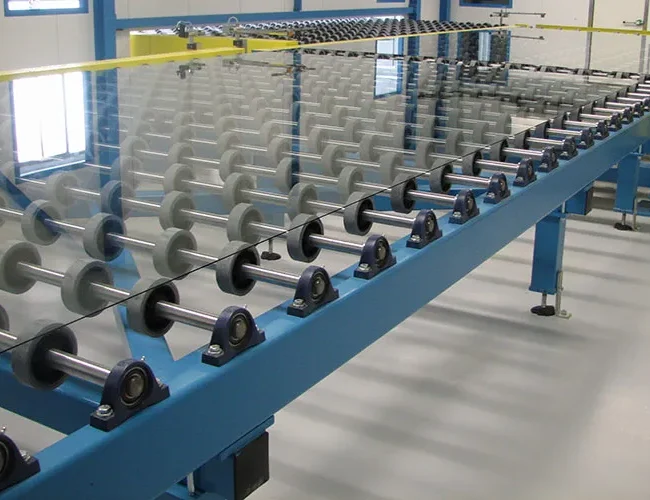

Glass transport
Synchronized conveying systems to move glass plates along all line areas. Customized solutions according to factory layout and customers’ needs. These solutions can include accumulators, LES rotators and cutting systems.

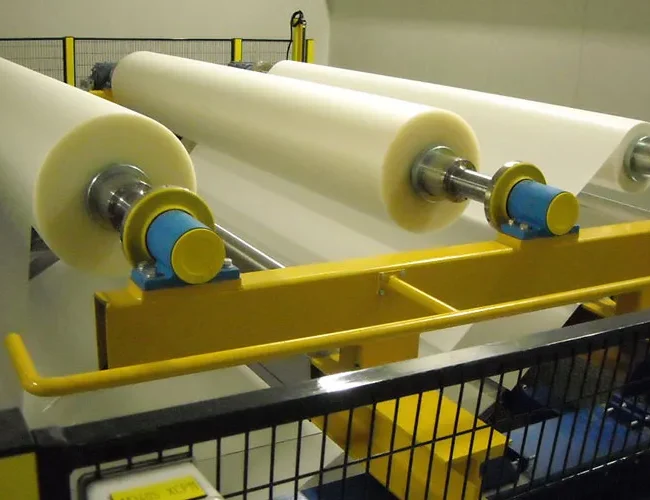

PVB storage
Line control automatically manages the PVB storage with 6 interchangeable rolls and self-fitting pre-unwinding system according to the size of processed plates.
PVB unwinding system
PVB unwinding system with device to reduce air quantity between PVB and glass plate. Multi-layers unwinding possibility.

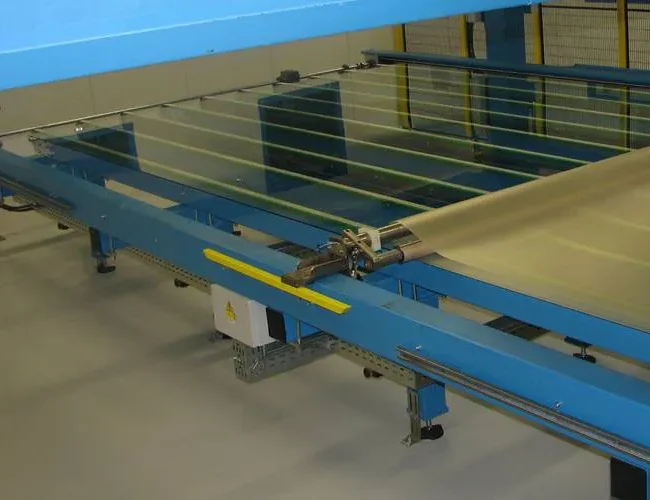

PVB trimming
Automatic bridges for the trimming of all 4 edges through a rotary disk for a continuous, fast and accurate finishing without damaging the glass edges.
Oven and nip rolls
Modular system for pre-oven and oven with infrared lamps. The modular system gives the possibility to customize the solution according to glass type and line cycle time. Nip rolls with automatic positioning and automatic pressure set-up according to the glass thickness.

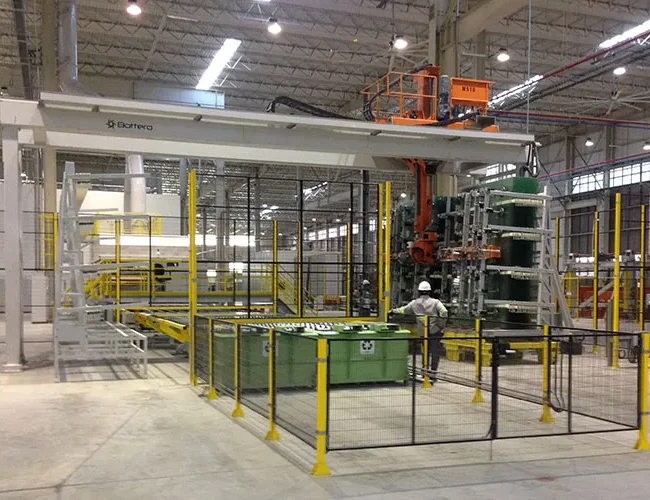

Unloading
After the pre-laminated process, the glass plates are unloaded on special racks for autoclave. During the glass unloading, the stacker or a dedicated equipment arranges the spacers to separate the glass or the packs on the autoclave rack.

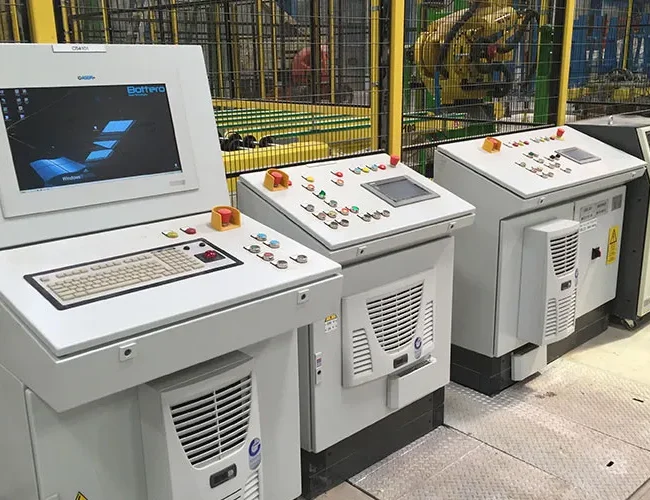

Line control
Line control based on PLC platform. Server/clients SCADA system for Human interface for all areas with synoptic and troubleshooting functions. Report system for production and process data analysis.
