Victralux

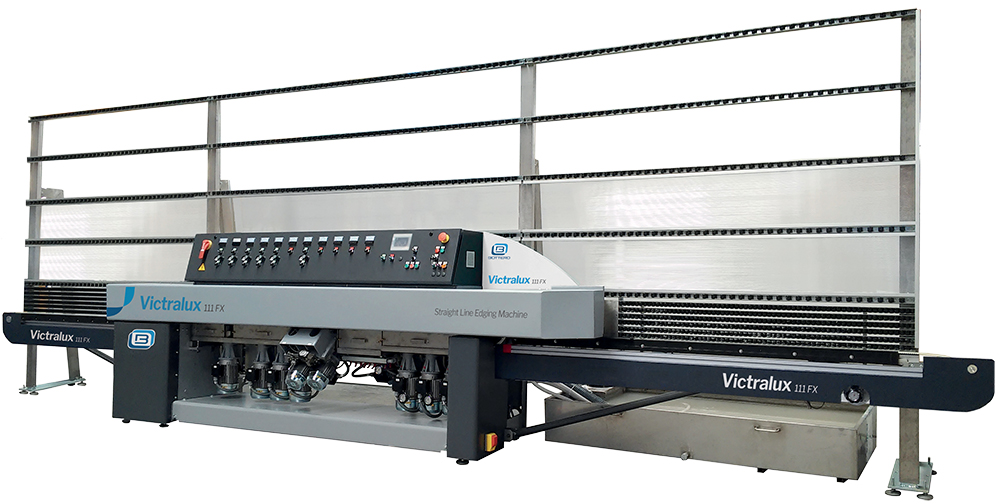

Victralux is the range of Bottero Straight Line Edgers.The 5 models available within this range of machines allow working the edge with arrises and the possible dubbing system.

Main qualities

Bottero’s vertical edge grinding and bevelling machines allow the highest quality results to be achieved when processing edges, thereby guaranteeing a perfect finish and allowing use in the most elegant applications, in which quality is considered an essential element. The vertical edgers and bevelling machines are designed to ensure maximum production and maximum reliability. The availability of numerous machine set-up configurations allows you to choose the right product for both simple and extremely advanced processing operations.

Bottero straight line edgers and bevellers are built on a heavy duty electro-welded steel frame. Anti-corrosive materials are extensively used throughout the machine, such as stainless steel and water resistant technical polymers.

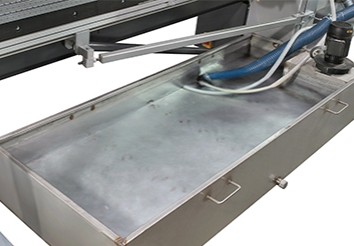

The water tanks are manufactured from stainless steel. This gives them greater longevity compared to other materials. Their design makes them easy to clean.

All parts coming into contact with water are manufactured from stainless steel. This guarantees that the mechanical components enjoy the longest possible lifespan. Straight line edgers and bevellers are designed to cope with 24 hour running. The machine needs only be stopped when the operator requires a break.

Features

Because they guarantee quality

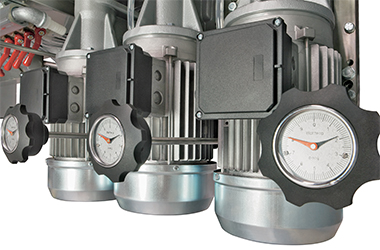

The heavy duty spindles eliminate any vibration that may affect the final product quality. The spindles are driven directly from the motor. This eliminates the need for drive belts and pulleys and drastically reduces the number of mechanical parts that may be subject to wear.

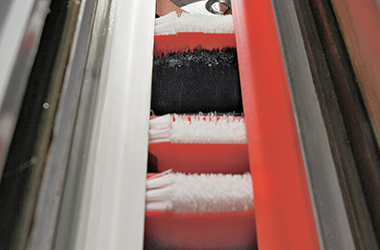

The water separator units are constructed from both brush and rubber sections. These prevent any grinding residues from crossing over into the cerium section of the machine, guaranteeing maximum finished product quality and gloss.

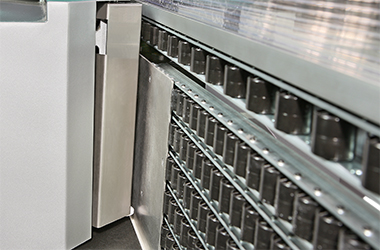

The in-feed conveyor belt system guarantees that the glass always enters the machine in a perfectly flat orientation. The in-feed drive can also be equipped with a pneumatic clutch to avoid any heavy belt wear.

Because they make sense

A glass thickness device mounted at the inlet of the main drive tracks prevents glass thicker than that for which the machine is set from entering the machine. This prevents damage occurring to the main tracking system

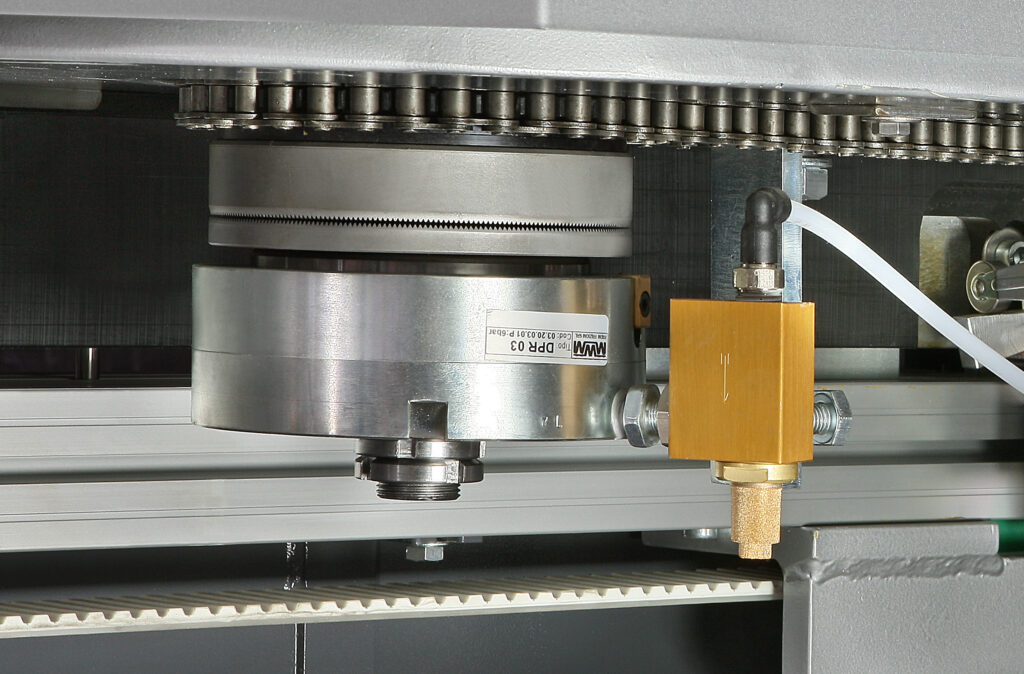

The pneumatic clutch is controlled by the glass thickness device. If glass of a greater thickness than the sliding blocks opening is detected, the clutch immediately disengages the track drive.

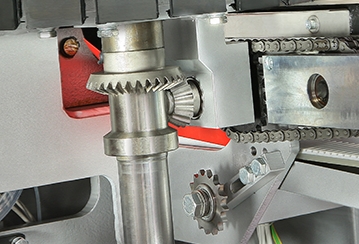

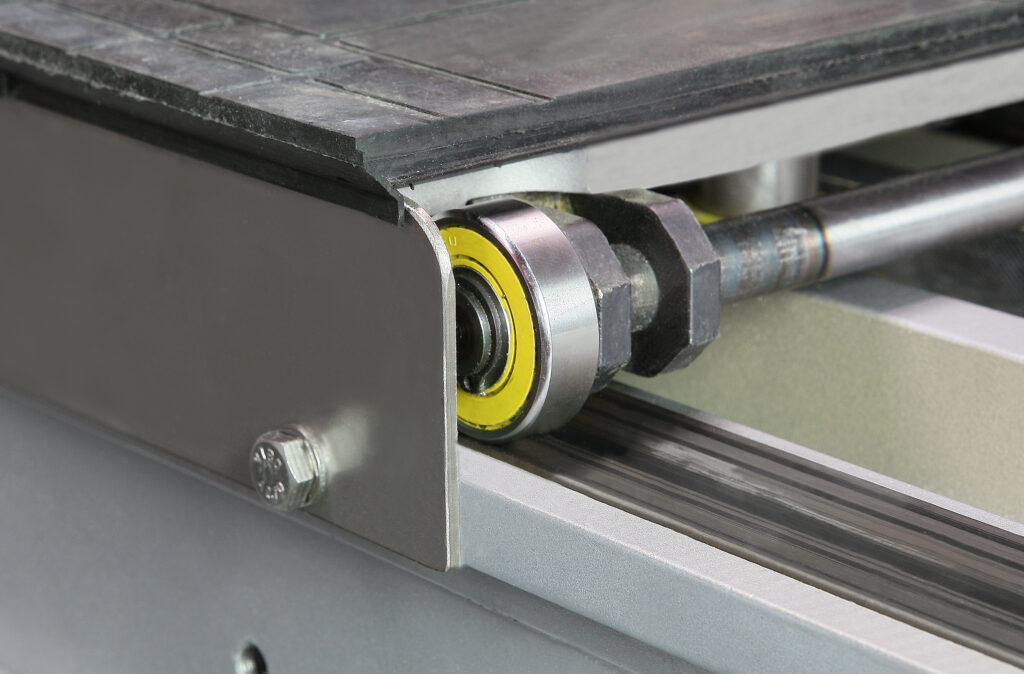

The sliding guides of the slide blocks are made of extremely hard alloy steel. This material allows the bearings, fully built in stainless steel, to slide perfectly and the system to last for a long time. The guides and bearings of the slide blocks are protected by a labyrinth seal system to prevent infiltration of the grinding water

Because they offer something extra

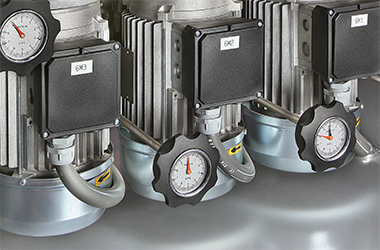

All Bottero grinding machines use the same spindles, proving the great reliability of our components. The use of high precision bearings and the presence of labyrinth seals guarantee “long life” for the spindle

Technical specifications

108 FX

Metric
108 FX
Minimum glass dim
40 x 40 mm
Glass thickness
3 ÷ 30 mm
Speed
0,6 ÷ 6 m/min
Installed power
23,5 KVA
Weight
3200 Kg


Metric


108 FX
Minimum glass dim

40 x 40 mm
Glass thickness

3 ÷ 30 mm

Speed


0,6 ÷ 6 m/min

Installed power


23,5 KVA

Weight


3200 Kg



108 FX-HP

Metric


108 FX-HP

Minimum glass dim


100 x 100 mm

Glass thickness


3 ÷ 30 mm

Speed


0,6 ÷ 6 m/min

Installed power


23,5 KVA

Weight


3200 Kg
Metric
108 FX-HP
Minimum glass dim
100 x 100 mm
Glass thickness
3 ÷ 30 mm
Speed
0,6 ÷ 6 m/min
Installed power
23,5 KVA
Weight
3200 Kg


110 FX

Metric
110 FX
Minimum glass dim
40 x 40 mm
Glass thickness
3 ÷ 30 mm
Speed
0,6 ÷ 6 m/min
Installed power
27 KVA
Weight
3200 Kg

Metric
110 FX
Minimum glass dim
40 x 40 mm
Glass thickness
3 ÷ 50 mm
Speed
0,6 ÷ 6 m/min
Installed power
27 KVA
Weight
3600 Kg

110 FX-HP

Metric
110 FX-HP
Minimum glass dim
100 x 100 mm
Glass thickness
3 ÷ 35 mm
Speed
27 KVA m/min
Installed power
27 KVA
Weight
3600 Kg

Metric
110 FX
Minimum glass dim
40 x 40 mm
Glass thickness
3 ÷ 50 mm
Speed
0,6 ÷ 6 m/min
Installed power
27 KVA
Weight
3600 Kg

111 FX

Metric
111 FX
Minimum glass dim
40 x 40 mm
Glass thickness
3 ÷ 50 mm
Speed
0,6 ÷ 6 m/min
Installed power
27 KVA
Weight
3600 Kg

Metric
111 FX
Minimum glass dim
40 x 40 mm
Glass thickness
3 ÷ 50 mm
Speed
0,6 ÷ 6 m/min
Installed power
27 KVA
Weight
3600 Kg

111 FX-HP

Metric


111 FX-HP
Minimum glass dim

100 x 100 mm
Glass thickness

3 ÷ 50 mm

Speed


0,6 ÷ 6 m/min

Installed power


27 KVA

Weight


3600 Kg



Metric


111 FX-HP


Minimum glass dim




100 x 100 mm
mm


Glass thickness


3 ÷ 50 mm
mm


Speed




0,6 ÷ 6 m/min


Installed power


27 KVA
mm


Weight


3600 Kg
mm


109 CDX

Metric
109 CDX
Minimum glass dim
40 x 40 mm
Glass thickness
3 ÷ 30 mm
Speed
0,6 ÷ 6 m/min
Installed power
23,5 KVA
Weight
3200 Kg

Metric
109 CDX
Minimum glass dim
40 x 40 mm
Glass thickness
3 ÷ 30 mm
Speed
0,6 ÷ 6 m/min
Installed power
23,5 KVA
Weight
3200 Kg

109 CDX-HP

Metric
109 CDX-HP
Minimum glass dim
100 x 100 mm
Glass thickness
3 ÷ 30 mm
Speed
0,6 ÷ 6 m/min
Installed power
23,5 KVA
Weight
3200 Kg

Metric
109 CDX-HP
Minimum glass dim
100 x 100 mm
Glass thickness
3 ÷ 30 mm
Speed
0,6 ÷ 6 m/min
Installed power
23,5 KVA
Weight
3200 Kg

112 FX

Metric
112 FX
Minimum glass dim
40 x 40 mm
Glass thickness
3 ÷ 30 mm
Speed
0,6 ÷ 6 m/min
Installed power
29 KVA
Weight
3600 Kg

Metric
112 FX
Minimum glass dim
40 x 40 mm
Glass thickness
3 ÷ 30 mm
Speed
0,6 ÷ 6 m/min
Installed power
29 KVA
Weight
3600 Kg

112 FX

Metric
112 FX
Minimum glass dim
100 x 100 mm
Glass thickness
3 ÷ 30 mm
Speed
0,6 ÷ 6 m/min
Installed power
29 KVA
Weight
3600 Kg

Metric
112 FX
Minimum glass dim
100 x 100 mm
Glass thickness
3 ÷ 30 mm
Speed
0,6 ÷ 6 m/min
Installed power
29 KVA
Weight
3600 Kg

109 CDX

Metric
109 CDX
Minimum glass dim
40 x 40 mm
Glass thickness
3 ÷ 30 mm
Speed
0,6 ÷ 6 m/min
Installed power
23,5 KVA
Weight
3200 Kg

Metric
109 CDX
Minimum glass dim
40 x 40 mm
Glass thickness
3 ÷ 30 mm
Speed
0,6 ÷ 6 m/min
Installed power
23,5 KVA
Weight
3200 Kg

109 CDX-HP

Metric
109 CDX-HP
Minimum glass dim
100 x 100 mm
Glass thickness
3 ÷ 30 mm
Speed
0,6 ÷ 6 m/min
Installed power
23,5 KVA
Weight
3200 Kg


Metric


109 CDX-HP


Minimum glass dim




100 x 100 mm


Glass thickness


3 ÷ 30 mm


Speed




0,6 ÷ 6 m/min


Installed power


23,5 KVA


Weight


3200 Kg
